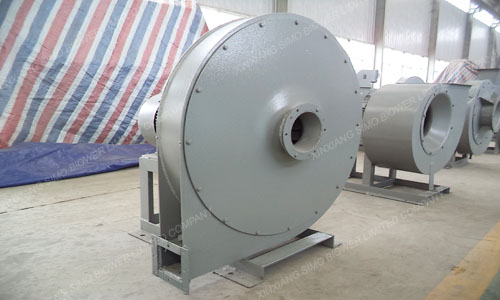

PDF DownloadXHP fan is suitable for conveying high pressure clean air at normal temperature and light particles/powder/debris/short fiber materials, and usually is used for air delivery slot, forced ventilating, rapid drying, forced cooling and heat dissipation, pressurization and decompression seal of industrial equipment, etc.
2. Small volume, compact structure, can be installed in narrow space.
3. Easy for installation, don’t need professionals to direct.
4. High efficiency of energy transmission, motor’s energy is completely and directly used for impeller, no energy consumption in transmission process.
5. With Small starting current, don’t need motor soft start device for below 7.5kw power.
6. Adopt high quality carbon steel manufacturing, or stainless steel and other metal materials according to customers’ requirements.
7. Running test and vibration value test are done for fans after finishing manufacturing, ensuring reliable running.
|
Application |
Temperature |
Normal temperature air |
|
|
Air composition |
Clean air |
||
|
Light particle materials |
|||
|
Performance |
Impeller diameter |
400-800 |
mm |
|
Speed of main shaft |
≤4000 |
rpm |
|
|
Pressure range |
5028-4828 |
Pa |
|
|
Flow range |
235-883 |
m3/h |
|
|
Structure |
Blade |
Forward |
|
|
Impeller support |
SWSI (Single Width, Single Inlet), Impeller overhung. |
||
|
Drivetrain |
Direct drivetrain |
Can assign |
|
|
System |
Motor |
SIEMENS, ABB, SIMO, LA… |
Can assign |
|
Impeller |
Carbon steel |
||
|
Impeller cone (Air Inlet) |
Carbon steel |
||
|
Case |
Carbon steel |
||
|
Air damper |
Carbon steel |
||
|
Foundation bolt |
Carbon steel |
|
|
|
Optional |
System base frame, Protective screening, |
||
